EXPEDITE PRODUCT TESTING WITH THOR

To improve the time from product concept to delivery, the JASTI THOR-50M finite element model has been developed and validated by the leading LS-DYNA, biomechanics, and occupant protection experts from FRC for use on Linux clusters with LS-DYNA, the world standard for virtual impact crash testing.

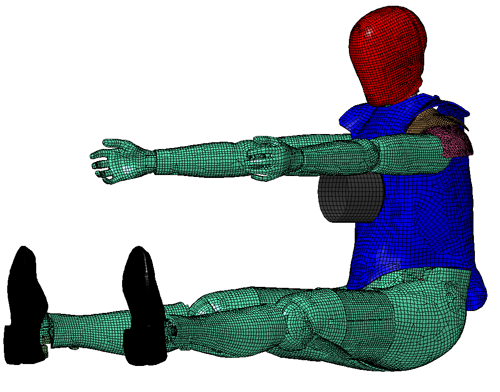

THOR 50
FINITE ELEMENT MODEL



Meets All NHTSA and Euro-NCAP Calibration Corridors


5-STAR CFIR Finite Element Model Certification

Supporting Manufacturers in Ground Vehicle, Aerospace and Defense Industries with State-of-the-Art Virtual Testing and Validation of Advanced Safety Systems
  • The provided positioning tree makes positioning of the virtual dummy easy and intuitive

  • All the instrumentation outputs from the physical dummy are easily accessible from the JASTI-THOR 50th percentile male virtual model.

  • Easy to follow part numbering structure

Quality

  • Uses state of the art modeling methods and reflects high quality meshing

  • All Jacket Parts incorporated

  • Accurate instrumentation locations

Compatibility

  • Compatible with explicit LS-DYNA as a detailed and fast running model

  • Compatible with available pre-post processors like LS-PREPOST and Hypermesh among others

  • Supports Linux and Windows operating systems

  • Linux MPP INTEL clusters

Easy to Use


ACCURACY

  • The JASTI-THOR 50th percentile male dummy model meets all calibration requirements
  • The model is validated against component-level and full-scale test results from the JASTI-THOR 50th dummy
  • State of the art modeling methods ensure accuracy and model stability
  • The masses and moments of inertia of individual parts and part groups are consistent with those of the physical dummy
  • All jacket inserted parts incorporated.
  • Instrumentation locations and reference systems accurately incorporated
  • Reflects the most recent updates to the THOR performance requirement corridors
  • Meets EU and US performance requirements

SLED TESTING WITH SEAT BELT AND AIRBAG

THOR HEAD, NECK & CHEST TESTING

Benefits of Working with Friedman Research

FRC guarantees the lowest licensing costs, with both purchase or leasing structures available.

LS-DYNA restraint and structure simulations engineering support hour blocks available, to easily control costs

FRC will provide Customers with worldwide technical support 24/7 for virtual testing of the THOR 50th percentile dummy and other finite element models for virtual testing products.

FRC will also provide Customers with customized LS-DYNA, Biomechanics, restraint, and crashworthiness finite element solution support.

Contact us about the THOR 50M Model!
